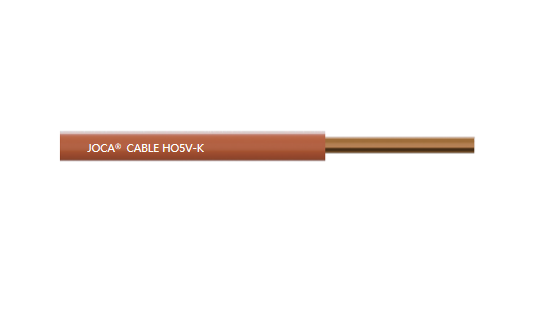

HO5V-K
HO5V-K柔性弯曲单芯线，符合欧盟协调标准，用于电器、仪器、电气装置的内部的柔软连接，仪器装置、配电盘、电源分配器(板)和电信设备之间连接也适用于保护系统(接地线)与报警灯。符合认证:RoHSCE 电缆结构1. 导体:绞合裸铜或者镀锡铜符合IEC60228，VDE02955 类标准2. 绝缘:PVC/TI1符合DIN VDE 0281第1部分HD 21.13. 颜色识别:符合 HD 402标准4. 应用标准: HD 21.3 S3、VDE-0281 Part-3、CE Low VoltageDiretive、73/23/EEC and 93/68/EEC技术参数：1. 额定电压:300/500V2. 测试电压:2000V符合DIN VDE 0281第2部分HD 21.23. 最小弯曲半径4. 固定敷设:12D(电缆外径)5. 移动安装;16D(电缆外径)6. 温度范围7. 固定敷设:-20至+70℃8. 移动安装:-5 ℃至+70℃型号规格近似外径 (mm)电缆近似重量 (kg/km)H05V - K0.52.18.5H05V - K0.752.311.2H05V - K12.413.6

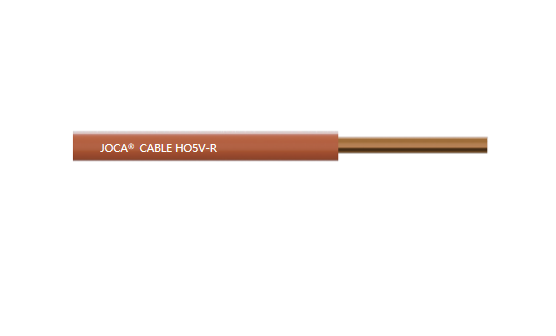

HO5V-R
HO5V-R可弯曲单芯线，易开皮，裁剪，安装方便，符合欧盟协调标准，用于电器、装置的配电盘与电源分配器接线板之间的内部周边接线，电子和电气设备开关柜之间接口，设计使用半暴露和嵌入式导管可弯曲敷设与接地线。符合认证:RoHS CE 电缆结构1. 导体:绞合裸铜或者镀锡铜符合IEC60228，VDE02952. 绝缘:PVC/TI1符合 DIN VDE0281第1部分 HD21.13. 颜色识别:符合 HD 402 标准4. 应用标准:HD 21.3 S3、VDE-0281 Part-3、CE Low VltageDiretive、73/23/EEC and 93/68/EEC技术参数：1. 额定电压:300/500V2. 测试电压:2000V符合DINVDE0281第2部分HD21.23. 最小弯曲半径4. 固定敷设：12D(电缆外径)5. 温度范围6. 固定敷设:-20至 +70℃型号规格近似外径 (mm)电缆近似重量 (kg/km)H05V - R0.52.18.9H05V - R0.752.311.5H05V - R12.514.4

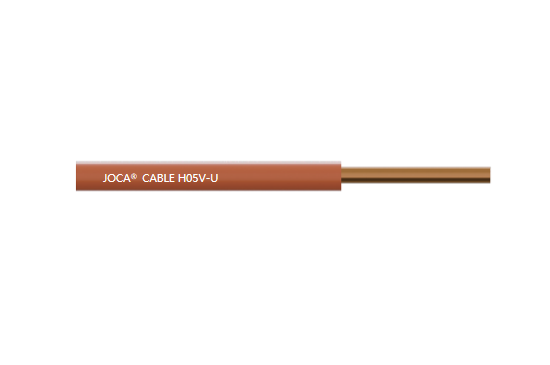

H05V-U
H05V-U实芯单芯线，易开皮，裁剪，安装方便，符合欧盟协调标准，用于电器、仪器的配电盘与电源分配器接线板之间的内部周边接线，电子和电气设备开关柜之间接口，同时适用于电源与照明系统;可暴露和嵌入式导管固定敷设。符合认证:RoHS CE 电缆结构1. 导 体：单根裸铜或者镀锡铜符合IEC 60228,VDE 0295 1类标准2. 绝 缘：PVC/TI1符合DIN VDE 0281第1部分HD21.1 3. 颜色识别：符合HD 402标准4. 应用标准：HD21.3 S3、VDE-0281Part-3、CELow Voltage Diretive、73/23/EECand 93/68/EEC技术参数：1. 额定电压：300/500V2. 测试电压：2000V符合DIN VDE 0281第2部分HD21.2 3. 最小弯曲半径-固定敷设：12D (电缆外径) 4. 温度范围-固定敷设：-20℃至+70℃型号规格近似外径 (mm)电缆近似重量 (kg/km)H05V - U0.528.4H05V - U0.752.211H05V - U12.313.6
UL3321
UL3321 电子线是针对电子设备、工业控制及精密仪器内部布线需求研发的专业化产品，遵循 UL758、UL1581 及 CSA C22.2 NO.210.2 等国际标准，使用标准厚度、易剥、易裁，适用于一般电子、电器设备内部连线应用标准:UL758，UL1581 电缆结构1. 导体:实芯或绞合30-3AWG镀锡铜线或裸铜2. 绝缘:辐照或交联聚烯烃，符合ROHS标准·芯线技术参数：1. 额定电压:600V2. 测试电压:3000V3. 额定温度:150℃4. 燃烧测试:通过FT2阻燃测试
UL3173
UL3173 电子线是专为电子及电器设备内部布线设计的规范化产品，可满足不同类型设备的内部连接需求，在安全性与场景通用性方面表现突出，为设备稳定运行提供可靠线路保障。适用于一般电子、电器设备内部连线应用标准:UL758，UL1581及CSAC22.2NO.210.2 电缆结构1. 导体:使用9-26AWG单根或绞合裸铜或镀锡铜线2. 绝缘:耐热交联聚乙烯3. 芯线颜色:任意颜色技术参数：1. 额定电压:600V2. 测试电压:3000V3. 额定温度:125℃4. 燃烧测试:通过FT2阻燃测试
UL2725
UL2725 电子线采用多规格裸铜 / 镀锡铜导体与耐热 PVC 绝缘材质，具备耐高压、抗磨损、阻燃环保特性，适配多环境布线需求，用于2类系统及视频电子设备、电子计算机内部或外部连线参考标准:UL758，UL158 电缆结构1. 导体:实芯或绞合16-10AWG镀锡铜或裸铜2. 绝缘:特殊硬质耐热阻燃PVC绝缘或制造商可选附合等级的其它材料3. 芯线颜色:任意颜色4. 芯线结构:2芯或2芯以上芯线绞合，包铝箔麦拉成缆可选，集合可排列，可有对绞单元屏蔽5. 屏蔽:镀锡铜6. 护套材料:混合80度耐热阻燃PVC，通过VW-1阻燃测试标准7. 护套颜色:任意颜色技术参数：1. 额定电压:30V2. 测试电压:1500V3. 额定温度：4. 固定:-20℃至+80℃C5. 挠曲:-5℃至+80℃6. 弯曲半径：7. 固定:4 X D8. 挠曲:15 X D9. 燃烧测试:通过UL VW-1、CSA FTI阻燃测试
UL20276
UL20276 电子线具备高耐压、抗老化、阻燃特性，适配高低温复杂环境，适用于电子设备的机内与机外配线，可做为测量、检测和控制用线，可用于成套设备、暖气、空调系统、冷冻设备、办公自动设备及数据处理系统等应用标准:UL758，UL1581 电缆结构1. 导体:使用30~14AWG单根或绞合裸铜丝或镀锡铜丝2. 绝缘:80℃半硬质PVC混合物3. 芯线颜色:任意色4. 对绞:满足EMC电磁指令2014/30/EU要求的绞合节距5. 屏蔽:铝塑复合带(可选)+镀锡铜丝6. 护套:80℃PVC混合物7. 护套颜色:任意颜色技术参数：1. 额定电压:30V2. 测试电压:1000V3. 温度范围:固定:-20℃~80℃4. 移动:-5℃~80℃5. 弯曲半径;固定:4D;移动:8D6. 燃烧测试:通过UL，VW-1及CSAFT1垂直燃烧测试型号规格近似外径 (mm)电缆近似重量 (kg/km)UL202761Px26AWG3.8251UL202762Px26AWG5.1381UL202763Px26AWG6.4459UL202764Px26AWG6.8554UL202765Px26AWG7.2661UL202766Px26AWG7.2763UL202767Px26AWG7.7793UL202768Px26AWG8.4903UL202769Px26AWG8.71009UL2027610Px26AWG9.31211UL2027612Px25AWG6.2357UL2027613Px25AWG6.5469UL202763Px25AWG6581UL202764Px25AWG6.9741UL202765Px25AWG7.4804UL202766Px25AWG7.9929UL202768Px25AWG81154UL202769Px25AWG8.51279UL202761Px24AWG4265UL202762Px24AWG5.5443UL202763Px24AWG6.8530UL202764Px24AWG6.7724UL202765Px24AWG7.3799UL202766Px24AWG7.8928UL202767Px24AWG8.41112UL202768Px24AWG8.71242UL202769Px24AWG9.21379UL202761Px23AWG4.1280UL202762Px23AWG5.7471UL202763Px23AWG6569UL202764Px23AWG6.9776UL202765Px23AWG7.5882UL202766Px23AWG8.11003UL202767Px23AWG8.11055UL202768Px23AWG8.91305UL202769Px23AWG10.71452UL2027610Px23AWG14.51636UL202761Px22AWG6.8639UL202762Px22AWG7.1762UL202763Px22AWG7.7932UL202765Px22AWG8.61095UL202766Px22AWG8.51323UL202767Px22AWG10.21604UL202768Px22AWG11.11784UL202769Px22AWG11.81953UL2027610Px22AWG14.7325UL202761Px21AWG468UL202762Px21AWG781.9UL202763Px21AWG7.3100.4UL202764Px21AWG8118.5UL202765Px21AWG8.9143UL202766Px21AWG8.8151.7UL202767Px21AWG10.5171.2UL202769Px21AWG11.9206.8UL2027610Px21AWG12.6224.7UL202761Px20AWG4.936.5UL202762Px20AWG7.472.9UL202763Px20AWG7.895.7UL202764Px20AWG8.6118.6UL202765Px20AWG10.6149.4UL202766Px20AWG11.4189.3UL202767Px20AWG11.6206.4UL202769Px20AWG12.4296.4UL2027610Px20AWG13.4298.6UL202761Px18AWG5.140.9UL202762Px18AWG7.884.7UL202763Px18AWG8.2104.8UL202764Px18AWG8.1134.4UL202765Px18AWG10.1160UL202766Px18AWG11.2192.4UL202767Px18AWG11.2206.9UL202768Px18AWG12.2242.6UL202769Px18AWG13.5277.3UL2027610Px18AWG14.4303.6UL202761Px17AWG5.445.7UL202762Px17AWG8.295.7UL202763Px17AWG8128.9UL202764Px17AWG10.9159.5UL202765Px17AWG12188.1UL202766Px17AWG8.6225.1UL202767Px17AWG8.548.1UL202768Px17AWG10.7138.7UL2027610Px17AWG10.4169.5UL202761Px17AWG5.751.5UL202762Px17AWG8.6107.2UL202763Px17AWG9.5145.5UL202764Px17AWG10.4180.8UL202765Px17AWG11.5214.5UL202766Px17AWG12.7256.7UL202767Px17AWG12.3237.2UL202768Px17AWG13.5284.1UL202769Px17AWG--UL2027610Px17AWG659.7UL202761Px16AWG8.6123.5UL202762Px16AWG9.2169.1UL202763Px16AWG10.1169.1UL202764Px16AWG11.1211.3UL202765Px16AWG12.3252.3UL202766Px16AWG13.5302UL202767Px16AWG--UL202768Px16AWG--UL202769Px16AWG--UL2027610Px16AWG--
UL2586屏蔽线
UL2586 屏蔽线具备强抗电磁干扰、宽温耐候、高耐压安全特性，适用于无应力缓释或强制引导的自由非连续往复运动下的安装及固定敷设。如机床制造，成套设备安装工程，喷漆车间，电站，冷冻设备，办公自动化设备等应用标准:UL758，UL1581 电缆结构1. 导体:使用30~2AWG单根或绞合裸铜丝或镀锡铜丝2. 绝缘:105℃耐热PVC混合物3. 芯线颜色:任意色4. 屏蔽:铝塑复合带(可选)+镀锡铜丝5. 护套:105℃耐热PVC混合物6. 护套颜色:任意颜色技术参数：1. 额定电压:600V or 1000V2. 测试电压:3000V3. 温度范围:固定:-20℃~105℃4. 移动:-5℃~105℃5. 弯曲半径:6. 固定:4D;移动:8D7. 燃烧测试;8. 通过UL VW-1及CSA FT1垂直燃烧测试型号规格近似外径 (mm)电缆近似重量 (kg/km)UL25862×20AWG7.163.2UL25863×20AWG7.574.8UL25864×20AWG8.189UL25865×20AWG8.2116UL25866×20AWG10132.9UL25867×20AWG10142.9UL25868×20AWG10.9161.7UL25869×20AWG12.1191.9UL258610×20AWG12.9209.1UL258612×20AWG13.4227.9UL258613×20AWG13.4239.2UL258614×20AWG14.1269.3UL258615×20AWG15267.6UL258616×20AWG15293.9UL258617×20AWG15.7302.2UL258618×20AWG15.7335UL258619×20AWG15.7345UL25862×18AWG7.673.2UL25863×18AWG889.8UL25864×18AWG8.1118.4UL25865×18AWG8.9135.3UL25866×18AWG10.9165.3UL25867×18AWG10.9178.6UL25868×18AWG11.9207.2UL25869×18AWG13231.8UL258610×18AWG14271.2UL258611×18AWG14.4299.6UL258612×18AWG15.4321.6UL258613×18AWG15.4338.7UL258614×18AWG16.3368.2UL258615×18AWG16.3383UL258616×18AWG17.1407.3UL258617×18AWG17.1422.1UL258618×18AWG17.1435.4UL25862×16AWG8.289.5UL25863×16AWG9.1120.4UL25864×16AWG9.9135.3UL25865×16AWG10.9179.3UL25866×16AWG12214.8UL25867×16AWG12232.9UL25868×16AWG13262.7UL25869×16AWG14.4301.4UL258610×16AWG15.5338.5UL258611×16AWG16.1358.1UL258612×16AWG16.9385.9UL258613×16AWG16.9418.7UL258614×16AWG18439.6UL258615×16AWG18470.3UL258616×16AWG19.2503.9UL258617×16AWG19.2540.9UL258618×16AWG19.2568.9UL258619×16AWG19.2587.6UL25862×14AWG9.4152.7UL25863×14AWG8.9195.7UL25864×14AWG11237.5UL25865×14AWG12.2282.1UL25866×14AWG13.4310.7UL25867×14AWG13.4351.2UL25868×14AWG14.5403.3UL25869×14AWG16.2449.6UL258610×14AWG17.2486.7UL258611×14AWG18519.3UL258612×14AWG17.9574.8UL258613×14AWG19.1604.6UL258614×14AWG19.1646.6UL258615×14AWG20.1678.3UL258616×14AWG21.3738.3UL258617×14AWG21.3788.5UL258618×14AWG21.3798.1UL258619×14AWG21.3798.1UL25862×12AWG10.9158.6UL25863×12AWG11.1205.1UL25864×12AWG12.3268.9UL25865×12AWG13.8318.4UL25866×12AWG15377.5UL25867×12AWG15418.7UL25868×12AWG18.4482.2UL25869×12AWG18.1542.5UL258610×12AWG19.8623.3UL258611×12AWG20.2667.3UL258612×12AWG20.2703.3UL258613×12AWG21.4776.3UL258614×12AWG21.4818.3UL258615×12AWG22.7882.5UL258616×12AWG22.7927.1UL258617×12AWG24.1993.5UL258618×12AWG24.11038.1UL258619×12AWG24.11078.8UL25862×10AWG12.2210.9UL25863×10AWG12.9367.1UL25864×10AWG14.3420.9UL25865×10AWG15.9489.4UL25866×10AWG17.7543.6UL25867×10AWG17.7604.2UL25868×10AWG19.3701.1UL25869×10AWG21.4797UL258610×10AWG23859.3UL258611×10AWG23.9971.5UL258612×10AWG23.91031.2UL258613×10AWG25.31126.3UL258614×10AWG25.31186.9UL258615×10AWG26.81283.5UL258616×10AWG26.81347UL258617×10AWG28.41441.7UL258618×10AWG28.41507.8UL258619×10AWG28.41568.2
UL2586
UL2586 通过采用 30-2AWG 单根 / 绞合裸铜 / 镀锡铜导体、105℃耐热 PVC 绝缘 / 护套，适用于无应力缓释或强制引导的自由非连续往复运动下的安装及固定敷设。如机床制造，成套设备安装工程，喷漆车间，电站，冷冻设备，办公自动化设备等应用标准:UL758，UL1581 电缆结构1. 导体:使用30~2AWG单根或绞合裸铜丝或镀锡铜丝2. 绝缘:105℃耐热PVC混合物3. 芯线颜色:任意色4. 护套:105℃耐热PVC混合物5. 护套颜色:任意颜色技术参数：1. 额定电压:600V or 1000V2. 测试电压:3000V3. 温度范围:固定:-20℃~105℃4. 移动:-5℃~105℃5. 弯曲半径:固定:4D;移动:8D6. 燃烧测试:通过UL VW-1及CSA FT1垂直燃烧测试型号规格近似外径 (mm)电缆近似重量 (kg/km)UL25862×20AWG7.163.2UL25863×20AWG7.574.8UL25864×20AWG8.189UL25865×20AWG8.2116UL25866×20AWG10132.9UL25867×20AWG10142.9UL25868×20AWG10.9161.7UL25869×20AWG12.1191.9UL258610×20AWG12.9209.1UL258612×20AWG13.4227.9UL258613×20AWG13.4239.2UL258614×20AWG14.1269.3UL258615×20AWG15267.6UL258616×20AWG15293.9UL258617×20AWG15.7302.2UL258618×20AWG15.7335UL258619×20AWG15.7345UL25862×18AWG7.673.2UL25863×18AWG889.8UL25864×18AWG8.1118.4UL25865×18AWG8.9135.3UL25866×18AWG10.9165.3UL25867×18AWG10.9178.6UL25868×18AWG11.9207.2UL25869×18AWG13231.8UL258610×18AWG14271.2UL258611×18AWG14.4299.6UL258612×18AWG15.4321.6UL258613×18AWG15.4338.7UL258614×18AWG16.3368.2UL258615×18AWG16.3383UL258616×18AWG17.1407.3UL258617×18AWG17.1422.1UL258618×18AWG17.1435.4UL25862×16AWG8.289.5UL25863×16AWG9.1120.4UL25864×16AWG9.9135.3UL25865×16AWG10.9179.3UL25866×16AWG12214.8UL25867×16AWG12232.9UL25868×16AWG13262.7UL25869×16AWG14.4301.4UL258610×16AWG15.5338.5UL258611×16AWG16.1358.1UL258612×16AWG16.9385.9UL258613×16AWG16.9418.7UL258614×16AWG18439.6UL258615×16AWG18470.3UL258616×16AWG19.2503.9UL258617×16AWG19.2540.9UL258618×16AWG19.2568.9UL258619×16AWG19.2587.6UL25862×14AWG9.4152.7UL25863×14AWG8.9195.7UL25864×14AWG11237.5UL25865×14AWG12.2282.1UL25866×14AWG13.4310.7UL25867×14AWG13.4351.2UL25868×14AWG14.5403.3UL25869×14AWG16.2449.6UL258610×14AWG17.2486.7UL258611×14AWG18519.3UL258612×14AWG17.9574.8UL258613×14AWG19.1604.6UL258614×14AWG19.1646.6UL258615×14AWG20.1678.3UL258616×14AWG21.3738.3UL258617×14AWG21.3788.5UL258618×14AWG21.3798.1UL258619×14AWG21.3798.1UL25862×12AWG10.9158.6UL25863×12AWG11.1205.1UL25864×12AWG12.3268.9UL25865×12AWG13.8318.4UL25866×12AWG15377.5UL25867×12AWG15418.7UL25868×12AWG18.4482.2UL25869×12AWG18.1542.5UL258610×12AWG19.8623.3UL258611×12AWG20.2667.3UL258612×12AWG20.2703.3UL258613×12AWG21.4776.3UL258614×12AWG21.4818.3UL258615×12AWG22.7882.5UL258616×12AWG22.7927.1UL258617×12AWG24.1993.5UL258618×12AWG24.11038.1UL258619×12AWG24.11078.8UL25862×10AWG12.2210.9UL25863×10AWG12.9367.1UL25864×10AWG14.3420.9UL25865×10AWG15.9489.4UL25866×10AWG17.7543.6UL25867×10AWG17.7604.2UL25868×10AWG19.3701.1UL25869×10AWG21.4797UL258610×10AWG23859.3UL258611×10AWG23.9971.5UL258612×10AWG23.91031.2UL258613×10AWG25.31126.3UL258614×10AWG25.31186.9UL258615×10AWG26.81283.5UL258616×10AWG26.81347UL258617×10AWG28.41441.7UL258618×10AWG28.41507.8UL258619×10AWG28.41568.2
UL2517屏蔽线
UL2517 - 屏蔽线是抗干扰型设备内部专用布线，采用 30~2AWG 单根 / 绞合裸铜 / 镀锡铜导体，搭配 105℃耐热 PVC 混合物绝缘与护套，额定电压 300V，用于电脑、电器、电子设备及仪器、仪表等内部配线可作为测量、检测和控制电缆结合在机床制造、成套设备安装、电站、暖气和空调系统、冷冻设备、办公自动设备及数据处理系统等场合应用标准:UL758，UL1581 电缆结构1. 导体:使用30~2AWG单根或绞合裸铜丝或镀锡铜丝2. 绝缘:105℃耐热PVC混合物3. 芯线颜色:任意色4. 屏蔽:铝塑复合带(可选)+镀锡铜丝5. 护套:105℃耐热PVC混合物6. 护套颜色:任意颜色技术参数：1. 额定电压:300V2. 测试电压:2000V3. 温度范围;固定:-20℃~105℃4. 移动:-5℃~105℃5. 弯曲半径:固定:4D;移动:8D6. 燃烧测试;通过UL VW-1及CSA FT1垂直燃烧测试型号规格近似外径 (mm)电缆近似重量 (kg/km)UL25172×26AWG4.629.9UL25173×26AWG4.832.8UL25174×26AWG5.136.6UL25175×26AWG5.542.9UL25176×26AWG5.948.4UL25177×26AWG5.949.9UL25178×26AWG6.255.8UL25179×26AWG6.763UL251710×26AWG7.186.9UL251711×26AWG7.370.6UL251712×26AWG7.373.5UL251713×26AWG7.678.5UL251714×26AWG7.681.4UL251715×26AWG887.8UL251716×26AWG890.7UL251717×26AWG8.496.2UL251718×26AWG8.499.2UL251719×26AWG8.4100.7UL25172×24AWG4.933.9UL25173×24AWG5.138.1UL25174×24AWG5.544.4UL25175×24AWG5.850UL25176×24AWG6.357.1UL25177×24AWG6.359.2UL25178×24AWG6.766.9UL25179×24AWG7.274.8UL251710×24AWG7.681.9UL251711×24AWG7.884.7UL251712×24AWG7.888.6UL251713×24AWG8.294.8UL251714×24AWG8.298.7UL251715×24AWG8.6106.2UL251716×24AWG8.6110.2UL251717×24AWG9.4128.4UL251718×24AWG9.4130.3UL251719×24AWG9.4132.4UL25172×22AWG5.239.3UL25173×22AWG5.444.3UL25174×22AWG5.853.3UL25175×22AWG6.259.8UL25176×22AWG6.768.6UL25177×22AWG6.771.8UL25178×22AWG7.281.4UL25179×22AWG7.891.2UL251710×22AWG8.2108.6UL251711×22AWG8.5104UL251712×22AWG8.5109.3UL251713×22AWG9.3126.2UL251714×22AWG9.3131.5UL251715×22AWG9.7141.4UL251716×22AWG9.7146.7UL251717×22AWG10.1156UL251718×22AWG10.1161.4UL251719×22AWG10.1164.5UL25172×20AWG5.545.6UL25173×20AWG5.854.6UL25174×20AWG6.364.1UL25175×20AWG6.772.9UL25176×20AWG7.284.2UL25177×20AWG7.289.3UL25178×20AWG7.8101.7UL25179×20AWG8.4113.6UL251710×20AWG9.3134.2UL251711×20AWG9.6139.8UL251712×20AWG9.6147.1UL251713×20AWG10157.7UL251714×20AWG10165UL251715×20AWG10.7182.6UL251716×20AWG10.7190UL251717×20AWG11.2201.9UL251718×20AWG11.2209.3UL251719×20AWG11.2214.5UL25172×18AWG655.5UL25173×18AWG6.367.2UL25174×18AWG6.880.4UL25175×18AWG7.493.6UL25176×18AWG7.9108.8UL25177×18AWG7.9116.2UL25178×18AWG8.5132.6UL25179×18AWG9.7158.2UL251710×18AWG10.5179.8UL251711×18AWG10.8198.2UL251712×18AWG10.8218.7UL251713×18AWG11.3213.2UL251714×18AWG11.3228.8UL251715×18AWG12244.8UL251716×18AWG12257.4UL251717×18AWG12.6272.8UL251718×18AWG12.6283.4UL251719×18AWG12.6291.8UL25172×16AWG6.670.4UL25173×16AWG787.9UL25174×16AWG7.6106UL25175×16AWG8.2125.2UL25176×16AWG9.3154.8UL25177×16AWG9.3167.7UL25178×16AWG10190.8UL25179×16AWG11.1219.8UL251710×16AWG11.9248UL251711×16AWG12.3264.8UL251712×16AWG12.3277.6UL251713×16AWG12.9301.2UL251714×16AWG12.9314.1UL251715×16AWG13.7344.4UL251716×16AWG13.7360.3UL251717×16AWG14.4382.5UL251718×16AWG14.4398.3UL251719×16AWG14.4411.2
UL2517
UL2517电子线是工业级多用途设备布线，常规采用单根/绞合裸铜/镀锡铜导体（适配设备电流需求）、符合ROHS环保标准的绝缘材质，额定电压300V、耐温105℃，通过UL VW-1及CSA相关阻燃测试，具备良好的绝缘稳定性与抗老化性，用于电脑、电器、电子设备及仪器、仪表等内部配线。应用标准：UL758，UL1581 电缆结构1. 导体：使用30~2AWG单根或绞合裸铜丝或镀锡铜丝2. 绝缘：105℃耐热PVC混合物3. 芯线颜色：任意色4. 护套：105℃耐热PVC混合物5. 护套颜色：任意颜色技术参数：1. 额定电压：300V2. 测试电压：2000V3. 温度范围：固定：-20℃~105℃4. 移动：-5℃~105℃5. 弯曲半径;固定;4D;移动：8D6. 燃烧测试;通过UL VW-1及CSA FT1垂直燃烧测试型号规格近似外径 (mm)电缆近似重量 (kg/km)UL25172×6AWG4.121.6UL25173×6AWG4.324.5UL25174×6AWG4.628.6UL25175×6AWG533.5UL25176×6AWG5.338.6UL25177×6AWG5.340.3UL25178×6AWG5.745.3UL25179×6AWG6.252UL251710×6AWG6.658.2UL251711×6AWG6.860.2UL251712×6AWG6.861.9UL251713×6AWG7.167.9UL251714×6AWG7.169.2UL251715×6AWG7.475.6UL251716×6AWG7.477.4UL251717×6AWG7.883.3UL251718×6AWG7.885UL251719×6AWG7.886.5UL25172×4AWG4.325.2UL25173×4AWG4.529UL25174×4AWG5.334.2UL25175×4AWG5.740.1UL25176×4AWG6.150.4UL25177×4AWG6.756.8UL25178×4AWG7.164.5UL25179×4AWG7.372.6UL251710×4AWG7.376.2UL251711×4AWG7.685.7UL251712×4AWG7.893.8UL251713×4AWG898.3UL251714×4AWG8.4104.3UL251715×4AWG8.4108.6UL251716×4AWG8.4109.4UL25172×2AWG4.930.1UL25173×2AWG5.335.2UL25174×2AWG5.743.4UL25175×2AWG6.251.1UL25176×2AWG6.258.2UL25177×2AWG6.669UL25178×2AWG7.270.9UL25179×2AWG7.788.3UL251710×2AWG--UL251711×22AWG7.997UL251712×22AWG8.3106.6UL251713×22AWG8.3109.1UL251714×22AWG8.1127.6UL251715×22AWG8.6131.3UL251716×22AWG8.6141.3UL251717×22AWG8.6144.9UL251718×22AWG--UL251719×22AWG--UL25172×20AWG536.9UL25173×20AWG5.343.8UL25174×20AWG5.753.3UL25175×20AWG6.263.4UL25176×20AWG6.773.7UL25177×20AWG6.778.8UL25178×20AWG7.290.1UL25179×20AWG7.9101.6UL251710×20AWG8.4114.8UL251711×20AWG9.1129UL251712×20AWG9.1134UL251713×20AWG9.5146.6UL251714×20AWG10159.7UL251715×20AWG10162UL251716×20AWG10.7168.2UL251717×20AWG10.7181.1UL251718×20AWG--UL251719×20AWG--UL25172×18AWG5.547.2UL25173×18AWG6.857.1UL25174×18AWG6.370UL25175×18AWG6.884.4UL25176×18AWG7.496.8UL25177×18AWG7.4106UL25178×18AWG8.2121.2UL25179×18AWG8.2145.3UL251710×18AWG10.1172.8UL251711×18AWG10.1180.3UL251712×18AWG10.6198.1UL251713×18AWG10.6206.7UL251714×18AWG11.3227.3UL251715×18AWG11.3231.7UL251716×18AWG11.9251.7UL251717×18AWG11.9259.8UL251718×18AWG--UL251719×18AWG--UL25172×16AWG6.163UL25173×16AWG6.577.7UL25174×16AWG796.7UL25175×16AWG7.7115.2UL25176×16AWG8.4135.8UL25177×16AWG9.4148.7UL25178×16AWG10.5178.4UL25179×16AWG11.2206.6UL251710×16AWG11.6231.5UL251711×16AWG11.6243.6UL251712×16AWG12.4258.3UL251713×16AWG12.4289.6UL251714×16AWG13324.5UL251715×16AWG13335.5UL251716×16AWG13.9367.2UL251717×16AWG13.9379.3UL251718×16AWG--UL251719×16AWG--
UL2516
UL2516 电子线是多规格高压设备内部布线优选，采用 30-4/0-16AWG 单根或绞合裸铜 / 镀锡铜线导体、符合 ROHS 标准的聚氯乙烯绝缘，额定电压 600V、测试电压 3000V、耐温 105℃，通过 UL VW-1 及 CSA FT1 阻燃测试，支持任意芯线颜色定制，适用于一般电子、电器设备内部连线应用标准:UL 758,UL 1581及CSA C22.2 NO.210.2 电缆结构1. 导体:使用30-4/0-16AWG单根或绞合裸铜或镀锡铜线2. 绝缘/护套:聚氯乙烯符合ROHS环保要求3. 芯线颜色:任意颜色技术参数：1. 额定电压:600V2. 测试电压:3000V3. 额定温度:105℃4. 燃烧测试:通过 ULVW-1、CSA FT1阻燃测试
