应用范围
工业机器人扭转使用，可以接触油污环境使用。高度耐磨、耐刻痕场所，适用于机器人手臂本体上，耐腐蚀、酸碱、恶劣环境使用。高速移动使用场合，优越的抗震动性能。
电缆结构
1.导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。
2.绝缘：热塑性弹性体。
3.芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制。
4.护套：PUR
5.常规颜色：黑色、灰色、橙色。
技术参数：
1.额定电压：30V、300V、600V
测试电压：500V、2000V
2.最小弯曲半径：
固定安装：4xD
移动安装：6xD
3.摇摆测试：
弯曲频次：60次/分钟
弯曲角度：±90o
4.扭转测试：
扭转频次：60次/分钟
扭转角度：±180o
5.使用温度：
固定安装：-50℃~+105℃
移动安装：-40℃~+90℃

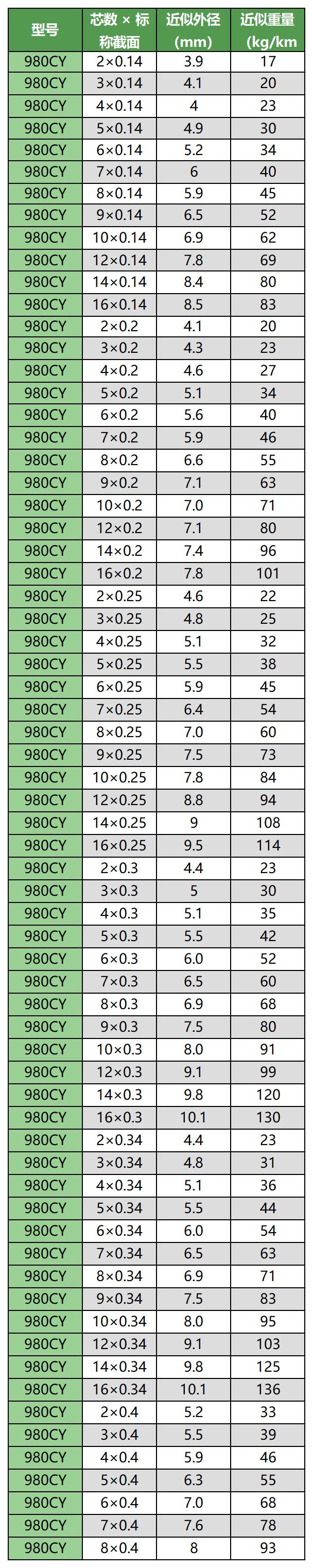

| 型号 | 芯数 × 标称截面 \(mm²\) | 近似外径 mm | 近似重量 \(kg/km\) |
| 980CY | 2×0.14 | 3.9 | 17 |
| 980CY | 3×0.14 | 4.1 | 20 |
| 980CY | 4×0.14 | 4.3 | 23 |
| 980CY | 5×0.14 | 4.9 | 30 |
| 980CY | 6×0.14 | 5.2 | 34 |
| 980CY | 7×0.14 | 5.6 | 40 |
| 980CY | 8×0.14 | 5.9 | 45 |
| 980CY | 9×0.14 | 6.5 | 52 |
| 980CY | 10×0.14 | 6.9 | 62 |
| 980CY | 12×0.14 | 7.8 | 69 |
| 980CY | 14×0.14 | 8.4 | 80 |
| 980CY | 16×0.14 | 8.5 | 83 |
| 980CY | 2×0.2 | 4.1 | 20 |
| 980CY | 3×0.2 | 4.3 | 23 |
| 980CY | 4×0.2 | 4.6 | 27 |
| 980CY | 5×0.2 | 5.1 | 34 |
| 980CY | 6×0.2 | 5.6 | 40 |
| 980CY | 7×0.2 | 5.9 | 46 |
| 980CY | 8×0.2 | 6.6 | 55 |
| 980CY | 9×0.2 | 7.1 | 63 |
| 980CY | 10×0.2 | 7 | 71 |
| 980CY | 12×0.2 | 7.1 | 80 |
| 980CY | 14×0.2 | 7.4 | 96 |
| 980CY | 16×0.2 | 7.8 | 101 |
| 980CY | 2×0.25 | 4.6 | 22 |
| 980CY | 3×0.25 | 4.8 | 25 |
| 980CY | 4×0.25 | 5.1 | 32 |
| 980CY | 5×0.25 | 5.5 | 38 |
| 980CY | 6×0.25 | 5.9 | 45 |
| 980CY | 7×0.25 | 6.4 | 54 |
| 980CY | 8×0.25 | 7 | 60 |
| 980CY | 9×0.25 | 7.5 | 73 |
| 980CY | 10×0.25 | 7.8 | 84 |
| 980CY | 12×0.25 | 8.8 | 94 |
| 980CY | 14×0.25 | 9.2 | 108 |
| 980CY | 16×0.25 | 9.5 | 114 |
| 980CY | 2×0.3 | 4.4 | 23 |
| 980CY | 3×0.3 | 4.8 | 30 |
| 980CY | 4×0.3 | 5.1 | 35 |
| 980CY | 5×0.3 | 5.5 | 42 |
| 980CY | 6×0.3 | 6 | 52 |
| 980CY | 7×0.3 | 6.5 | 60 |
| 980CY | 8×0.3 | 6.9 | 68 |
| 980CY | 9×0.3 | 7.5 | 80 |
| 980CY | 10×0.3 | 8 | 91 |
| 980CY | 12×0.3 | 9.1 | 99 |
| 980CY | 14×0.3 | 9.8 | 120 |
| 980CY | 16×0.3 | 10.1 | 130 |
| 980CY | 2×0.34 | 4.4 | 23 |
| 980CY | 3×0.34 | 4.8 | 31 |
| 980CY | 4×0.34 | 5.1 | 36 |
| 980CY | 5×0.34 | 5.5 | 44 |
| 980CY | 6×0.34 | 6 | 54 |
| 980CY | 7×0.34 | 6.5 | 63 |
| 980CY | 8×0.34 | 6.9 | 71 |
| 980CY | 9×0.34 | 7.5 | 83 |
| 980CY | 10×0.34 | 8 | 95 |
| 980CY | 12×0.34 | 9.1 | 103 |
| 980CY | 14×0.34 | 9.8 | 125 |
| 980CY | 16×0.34 | 10.1 | 136 |
| 980CY | 2×0.4 | 5.2 | 33 |
| 980CY | 3×0.4 | 5.5 | 39 |
| 980CY | 4×0.4 | 5.9 | 46 |
| 980CY | 5×0.4 | 6.3 | 55 |
| 980CY | 6×0.4 | 7 | 68 |
| 980CY | 7×0.4 | 7.6 | 78 |
| 980CY | 8×0.4 | 8.3 | 93 |
