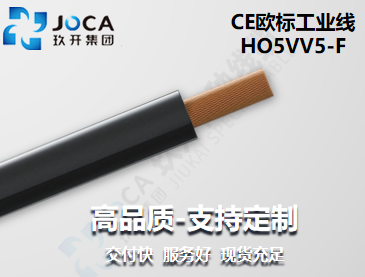

HO5VV5-F超细导体，柔软小的弯曲角度；防水、防油，常规工作温度为40℃;符合欧盟协调标准弯曲寿命比普通安装线要长，但不作为拖链电缆使用，适用于干燥或潮湿的室内，无强应力缓释或强制引导的 偶尔运动下的安装，以及工业使用环境下的偶尔弯曲移动场合，如机床、木工、磨床等。
应用标准：IEC227-7
电缆结构
1. 导 体：绞合裸铜或者镀锡铜符合VDE 0281 Part 5, HD21.5S3 IEC 60227-5
2. 绝 缘：PVC/TI2 聚氯乙烯符合DIN VDE 0281
3. 颜色识别：5芯以下棕、黑、浅蓝、黑或棕、黄绿， ≥0.5mm 黑色数字白色号码编号，5芯以上带有黄绿接地线。
4. 护套材料：PVC/TM5 聚氯乙烯
5. 应用标准：IEC227-7
技术参数：
1. 额定电压：300/500V
2. 测试电压：2500V 符合DIN VDE 0281第2部分HD21.2
3. 最小弯曲半径
固定敷设：4×D (电缆外径) 移动安装：7.5×D (电缆外径)
4. 温度范围
固定敷设：-20至+70℃ 移动安装：-5至+70℃

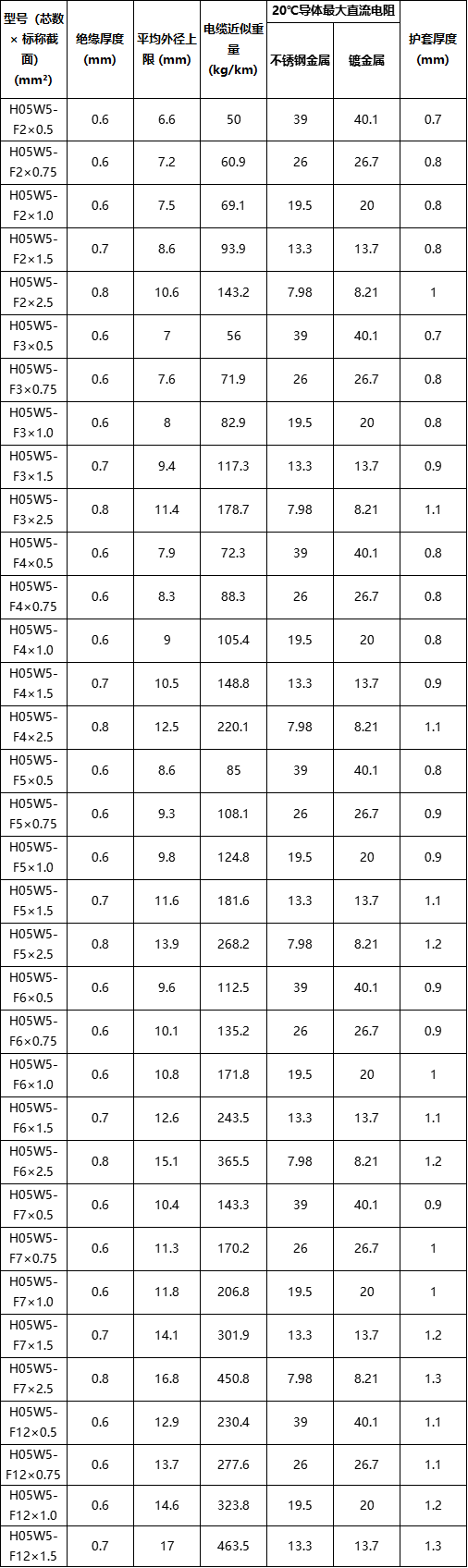

| 型号（芯数 × 标称截面（mm²）） | 绝缘厚度（mm） | 平均外径上限（mm） | 电缆近似重量（kg/km） | 20℃导体最大直流电阻（Ω/km） | 护套厚度（mm） | |
| 不锈钢金属 | 镀金属 | |||||
| H05W5-F2×0.5 | 0.6 | 6.6 | 50 | 39 | 40.1 | 0.7 |
| H05W5-F2×0.75 | 0.6 | 7.2 | 60.9 | 26 | 26.7 | 0.8 |
| H05W5-F2×1.0 | 0.6 | 7.5 | 69.1 | 19.5 | 20 | 0.8 |
| H05W5-F2×1.5 | 0.7 | 8.6 | 93.9 | 13.3 | 13.7 | 0.8 |
| H05W5-F2×2.5 | 0.8 | 10.6 | 143.2 | 7.98 | 8.21 | 1 |
| H05W5-F3×0.5 | 0.6 | 7 | 56 | 39 | 40.1 | 0.7 |
| H05W5-F3×0.75 | 0.6 | 7.6 | 71.9 | 26 | 26.7 | 0.8 |
| H05W5-F3×1.0 | 0.6 | 8 | 82.9 | 19.5 | 20 | 0.8 |
| H05W5-F3×1.5 | 0.7 | 9.4 | 117.3 | 13.3 | 13.7 | 0.9 |
| H05W5-F3×2.5 | 0.8 | 11.4 | 178.7 | 7.98 | 8.21 | 1.1 |
| H05W5-F4×0.5 | 0.6 | 7.9 | 72.3 | 39 | 40.1 | 0.8 |
| H05W5-F4×0.75 | 0.6 | 8.3 | 88.3 | 26 | 26.7 | 0.8 |
| H05W5-F4×1.0 | 0.6 | 9 | 105.4 | 19.5 | 20 | 0.8 |
| H05W5-F4×1.5 | 0.7 | 10.5 | 148.8 | 13.3 | 13.7 | 0.9 |
| H05W5-F4×2.5 | 0.8 | 12.5 | 220.1 | 7.98 | 8.21 | 1.1 |
| H05W5-F5×0.5 | 0.6 | 8.6 | 85 | 39 | 40.1 | 0.8 |
| H05W5-F5×0.75 | 0.6 | 9.3 | 108.1 | 26 | 26.7 | 0.9 |
| H05W5-F5×1.0 | 0.6 | 9.8 | 124.8 | 19.5 | 20 | 0.9 |
| H05W5-F5×1.5 | 0.7 | 11.6 | 181.6 | 13.3 | 13.7 | 1.1 |
| H05W5-F5×2.5 | 0.8 | 13.9 | 268.2 | 7.98 | 8.21 | 1.2 |
| H05W5-F6×0.5 | 0.6 | 9.6 | 112.5 | 39 | 40.1 | 0.9 |
| H05W5-F6×0.75 | 0.6 | 10.1 | 135.2 | 26 | 26.7 | 0.9 |
| H05W5-F6×1.0 | 0.6 | 10.8 | 171.8 | 19.5 | 20 | 1 |
| H05W5-F6×1.5 | 0.7 | 12.6 | 243.5 | 13.3 | 13.7 | 1.1 |
| H05W5-F6×2.5 | 0.8 | 15.1 | 365.5 | 7.98 | 8.21 | 1.2 |
| H05W5-F7×0.5 | 0.6 | 10.4 | 143.3 | 39 | 40.1 | 0.9 |
| H05W5-F7×0.75 | 0.6 | 11.3 | 170.2 | 26 | 26.7 | 1 |
| H05W5-F7×1.0 | 0.6 | 11.8 | 206.8 | 19.5 | 20 | 1 |
| H05W5-F7×1.5 | 0.7 | 14.1 | 301.9 | 13.3 | 13.7 | 1.2 |
| H05W5-F7×2.5 | 0.8 | 16.8 | 450.8 | 7.98 | 8.21 | 1.3 |
| H05W5-F12×0.5 | 0.6 | 12.9 | 230.4 | 39 | 40.1 | 1.1 |
| H05W5-F12×0.75 | 0.6 | 13.7 | 277.6 | 26 | 26.7 | 1.1 |
| H05W5-F12×1.0 | 0.6 | 14.6 | 323.8 | 19.5 | 20 | 1.2 |
| H05W5-F12×1.5 | 0.7 | 17 | 463.5 | 13.3 | 13.7 | 1.3 |
