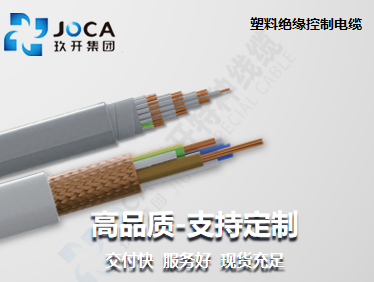

塑料绝缘控制电缆是以纯铜为导电芯，外裹 PVC 或环保低烟无卤塑料绝缘层，能稳定传输信号与少量电能，还具备防干扰、耐油污酸碱、防潮的功能，主要用于 450/750V 以下的工业设备控制、仪器连接、楼宇灯光空调控制，以及地铁、医院等场景的设备信号传输。
产品标准
本产品按GB/T 9330《塑料绝缘控制电缆》及企业标准制造。
适用范围
本产品适用于额定电压 450/750V及以下控制、信号、保护及测量系统接线之用。
使用特性
1. 额定电压Uo/U: 450/750V
2. 电缆导体的允许长期工作温度上限：聚氯乙烯绝缘 70℃。
3. 短路时(至多持续时间不超过5s)电缆导体的温度上限不超过：聚氯乙烯绝缘 160℃。
4. 电缆敷设时环境温度应不低于0℃
5. 推荐的允许弯曲半径
无铠装层的电缆，应不小于电缆外径的6倍;
有铠装或铜带屏蔽结构的电缆，应不小于电缆外径的12倍;
有屏蔽层结构的软电缆，应不小于电缆外径的6倍。
| 型号 | 名称 | 芯数 | 截面 |
| KVVR | 铜芯聚氯乙烯绝缘聚氯乙烯护套控制软电缆 | 2 - 60 | 0.5 - 10 |
| KVVRP | 铜芯聚氯乙烯绝缘聚氯乙烯护套编织屏蔽控制软电缆 | 2 - 60 | 0.5 - 10 |
| 型号 | 规格 | 近似外径 (mm) | 电缆近似重量 (kg/km) |
| KVVR | 2×0.5 | 6.7 | 54 |
| KVVR | 3×0.5 | 7 | 63 |
| KVVR | 4×0.5 | 7.6 | 77 |
| KVVR | 5×0.5 | 8.2 | 87 |
| KVVR | 6×0.5 | 8.8 | 100 |
| KVVR | 7×0.5 | 8.8 | 105 |
| KVVR | 8×0.5 | 9.5 | 120 |
| KVVR | 9×0.5 | 10.3 | 134 |
| KVVR | 10×0.5 | 11 | 148 |
| KVVR | 11×0.5 | 11 | 155 |
| KVVR | 12×0.5 | 11 | 163 |
| KVVR | 13×0.5 | 11.4 | 176 |
| KVVR | 14×0.5 | 11.4 | 186 |
| KVVR | 15×0.5 | 12 | 197 |
| KVVR | 16×0.5 | 12 | 206 |
| KVVR | 17×0.5 | 13.2 | 236 |
| KVVR | 18×0.5 | 13.2 | 244 |
| KVVR | 19×0.5 | 13.2 | 254 |
| KVVR | 20×0.5 | 13.5 | 264 |
| KVVR | 21×0.5 | 13.8 | 275 |
| KVVR | 22×0.5 | 14.1 | 290 |
| KVVR | 23×0.5 | 15.3 | 303 |
| KVVR | 24×0.5 | 15.3 | 313 |
| KVVR | 25×0.5 | 16.1 | 324 |
| KVVR | 26×0.5 | 16.1 | 335 |
| KVVR | 27×0.5 | 16.1 | 341 |
| KVVR | 28×0.5 | 16.7 | 354 |
| KVVR | 29×0.5 | 16.7 | 363 |
| KVVR | 30×0.5 | 16.7 | 371 |
| KVVR | 31×0.5 | 17.3 | 386 |
| KVVR | 32×0.5 | 17.3 | 395 |
| KVVR | 33×0.5 | 17.3 | 403 |
| KVVR | 34×0.5 | 17.9 | 417 |
| KVVR | 35×0.5 | 17.9 | 426 |
| KVVR | 36×0.5 | 17.9 | 434 |
| KVVR | 37×0.5 | 17.9 | 441 |
| KVVR | 2×0.75 | 7.2 | 62 |
| KVVR | 3×0.75 | 7.5 | 75 |
| KVVR | 4×0.75 | 8.1 | 89 |
| KVVR | 5×0.75 | 8.8 | 103 |
| KVVR | 6×0.75 | 9.4 | 120 |
| KVVR | 7×0.75 | 9.4 | 131 |
| KVVR | 8×0.75 | 10.1 | 147 |
| KVVR | 9×0.75 | 11 | 163 |
| KVVR | 10×0.75 | 11.7 | 179 |
| KVVR | 11×0.75 | 12.1 | 193 |
| KVVR | 12×0.75 | 12.1 | 204 |
| KVVR | 13×0.75 | 13.3 | 237 |
| KVVR | 14×0.75 | 13.3 | 249 |
| KVVR | 15×0.75 | 13.9 | 265 |
| KVVR | 16×0.75 | 13.9 | 276 |
| KVVR | 17×0.75 | 14.6 | 293 |
| KVVR | 18×0.75 | 14.6 | 304 |
| KVVR | 19×0.75 | 14.6 | 316 |
| KVVR | 20×0.75 | 15 | 330 |
| KVVR | 21×0.75 | 15.3 | 344 |
| KVVR | 22×0.75 | 16.3 | 362 |
| KVVR | 23×0.75 | 17 | 378 |
| KVVR | 24×0.75 | 17.3 | 390 |
| KVVR | 25×0.75 | 17.3 | 404 |
| KVVR | 26×0.75 | 17.3 | 415 |
| KVVR | 27×0.75 | 17.3 | 427 |
| KVVR | 28×0.75 | 17.9 | 443 |
| KVVR | 29×0.75 | 17.9 | 454 |
| KVVR | 30×0.75 | 17.9 | 466 |
| KVVR | 31×0.75 | 18.6 | 428 |
| KVVR | 32×0.75 | 18.6 | 494 |
| KVVR | 33×0.75 | 18.6 | 505 |
| KVVR | 34×0.75 | 19.7 | 540 |
| KVVR | 35×0.75 | 19.7 | 551 |
| KVVR | 36×0.75 | 19.7 | 562 |
| KVVR | 37×0.75 | 19.7 | 574 |
| KVVR | 2×1 | 7.3 | 67 |
| KVVR | 3×1 | 7.7 | 88 |
| KVVR | 4×1 | 8.3 | 101 |
| KVVR | 5×1 | 9 | 117 |
| KVVR | 6×1 | 9.7 | 135 |
| KVVR | 7×1 | 9.8 | 149 |
| KVVR | 8×1 | 10.4 | 166 |
| KVVR | 9×1 | 11.4 | 185 |
| KVVR | 10×1 | 12.1 | 203 |
| KVVR | 11×1 | 13.1 | 236 |
| KVVR | 12×1 | 13.1 | 250 |
| KVVR | 13×1 | 13.1 | 263 |
| KVVR | 14×1 | 13.1 | 277 |
| KVVR | 15×1 | 14.4 | 300 |
| KVVR | 16×1 | 14.4 | 313 |
| KVVR | 17×1 | 15.2 | 332 |
| KVVR | 18×1 | 15.2 | 345 |
| KVVR | 19×1 | 15.2 | 359 |
| KVVR | 20×1 | 15.6 | 375 |
| KVVR | 21×1 | 15.9 | 391 |
| KVVR | 22×1 | 16.3 | 411 |
| KVVR | 23×1 | 17.6 | 429 |
| KVVR | 24×1 | 17.6 | 443 |
| KVVR | 25×1 | 17.9 | 460 |
| KVVR | 26×1 | 17.9 | 473 |
| KVVR | 27×1 | 17.9 | 487 |
| KVVR | 28×1 | 18.5 | 505 |
| KVVR | 29×1 | 18.5 | 518 |
| KVVR | 30×1 | 18.5 | 532 |
| KVVR | 31×1 | 19.6 | 568 |
| KVVR | 32×1 | 19.6 | 581 |
| KVVR | 33×1 | 19.6 | 595 |
| KVVR | 34×1 | 20.4 | 614 |
| KVVR | 35×1 | 20.4 | 628 |
| KVVR | 36×1 | 20.4 | 641 |
| KVVR | 37×1 | 20.4 | 655 |
| KVVRP | 2×0.5 | 7.1 | 68 |
| KVVRP | 3×0.5 | 7.4 | 79 |
| KVVRP | 4×0.5 | 8 | 93 |
| KVVRP | 5×0.5 | 8.6 | 107 |
| KVVRP | 6×0.5 | 9.2 | 121 |
| KVVRP | 7×0.5 | 9.2 | 129 |
| KVVRP | 8×0.5 | 9.9 | 143 |
| KVVRP | 9×0.5 | 10.7 | 160 |
| KVVRP | 10×0.5 | 11.3 | 173 |
| KVVRP | 11×0.5 | 11.3 | 182 |
| KVVRP | 12×0.5 | 11.3 | 191 |
| KVVRP | 13×0.5 | 11.3 | 200 |
| KVVRP | 14×0.5 | 11.3 | 209 |
| KVVRP | 15×0.5 | 13 | 244 |
| KVVRP | 16×0.5 | 13 | 253 |
| KVVRP | 17×0.5 | 13.6 | 268 |
| KVVRP | 18×0.5 | 13.6 | 277 |
| KVVRP | 19×0.5 | 13.6 | 285 |
| KVVRP | 20×0.5 | 13.9 | 297 |
| KVVRP | 21×0.5 | 14.2 | 308 |
| KVVRP | 22×0.5 | 15 | 325 |
| KVVRP | 23×0.5 | 15.6 | 340 |
| KVVRP | 24×0.5 | 15.6 | 349 |
| KVVRP | 25×0.5 | 16.5 | 365 |
| KVVRP | 26×0.5 | 16.5 | 374 |
| KVVRP | 27×0.5 | 16.5 | 383 |
| KVVRP | 28×0.5 | 17 | 397 |
| KVVRP | 29×0.5 | 17 | 405 |
| KVVRP | 30×0.5 | 17 | 414 |
| KVVRP | 31×0.5 | 17.6 | 429 |
| KVVRP | 32×0.5 | 17.6 | 438 |
| KVVRP | 33×0.5 | 17.6 | 447 |
| KVVRP | 34×0.5 | 18.3 | 461 |
| KVVRP | 35×0.5 | 18.3 | 470 |
| KVVRP | 36×0.5 | 18.3 | 479 |
| KVVRP | 37×0.5 | 18.3 | 488 |
| KVVRP | 2×0.75 | 7.5 | 77 |
| KVVRP | 3×0.75 | 7.9 | 91 |
| KVVRP | 4×0.75 | 8.5 | 107 |
| KVVRP | 5×0.75 | 9.1 | 124 |
| KVVRP | 6×0.75 | 9.8 | 142 |
| KVVRP | 7×0.75 | 9.8 | 153 |
| KVVRP | 8×0.75 | 10.5 | 170 |
| KVVRP | 9×0.75 | 11.4 | 189 |
| KVVRP | 10×0.75 | 12.1 | 206 |
| KVVRP | 11×0.75 | 12.1 | 218 |
| KVVRP | 12×0.75 | 12.1 | 229 |
| KVVRP | 13×0.75 | 12.1 | 240 |
| KVVRP | 14×0.75 | 12.1 | 252 |
| KVVRP | 15×0.75 | 13.9 | 292 |
| KVVRP | 16×0.75 | 13.9 | 304 |
| KVVRP | 17×0.75 | 14.6 | 321 |
| KVVRP | 18×0.75 | 14.6 | 333 |
| KVVRP | 19×0.75 | 14.6 | 344 |
| KVVRP | 20×0.75 | 14.9 | 359 |
| KVVRP | 21×0.75 | 15.2 | 374 |
| KVVRP | 22×0.75 | 16.1 | 394 |
| KVVRP | 23×0.75 | 16.8 | 411 |
| KVVRP | 24×0.75 | 16.8 | 423 |
| KVVRP | 25×0.75 | 17.7 | 443 |
| KVVRP | 26×0.75 | 17.7 | 454 |
| KVVRP | 27×0.75 | 17.7 | 466 |
| KVVRP | 28×0.75 | 18.3 | 482 |
| KVVRP | 29×0.75 | 18.3 | 494 |
| KVVRP | 30×0.75 | 18.3 | 505 |
| KVVRP | 31×0.75 | 19 | 524 |
| KVVRP | 32×0.75 | 19 | 535 |
| KVVRP | 33×0.75 | 19 | 546 |
| KVVRP | 34×0.75 | 20.1 | 582 |
| KVVRP | 35×0.75 | 20.1 | 594 |
| KVVRP | 36×0.75 | 20.1 | 605 |
| KVVRP | 37×0.75 | 20.1 | 617 |
| KVVRP | 2×1 | 7.7 | 83 |
| KVVRP | 3×1 | 8.1 | 99 |
| KVVRP | 4×1 | 8.7 | 118 |
| KVVRP | 5×1 | 9.4 | 138 |
| KVVRP | 6×1 | 10.1 | 157 |
| KVVRP | 7×1 | 10.1 | 171 |
| KVVRP | 8×1 | 10.8 | 190 |
| KVVRP | 9×1 | 11.8 | 212 |
| KVVRP | 10×1 | 13.1 | 250 |
| KVVRP | 11×1 | 13.1 | 263 |
| KVVRP | 12×1 | 13.1 | 277 |
| KVVRP | 13×1 | 13.1 | 290 |
| KVVRP | 14×1 | 13.1 | 304 |
| KVVRP | 15×1 | 14.3 | 330 |
| KVVRP | 16×1 | 14.3 | 344 |
| KVVRP | 17×1 | 15 | 364 |
| KVVRP | 18×1 | 15 | 378 |
| KVVRP | 19×1 | 15 | 392 |
| KVVRP | 20×1 | 15.4 | 409 |
| KVVRP | 21×1 | 15.8 | 425 |
| KVVRP | 22×1 | 16.7 | 449 |
