PRODUCT CENTER
HO5V-K
HO5V-K柔性弯曲单芯线，符合欧盟协调标准，用于电器、仪器、电气装置的内部的柔软连接，仪器装置、配电盘、电源分配器(板)和电信设备之间连接也适用于保护系统(接地线)与报警灯。符合认证:RoHSCE 电缆结构1. 导体:绞合裸铜或者镀锡铜符合IEC60228，VDE02955 类标准2. 绝缘:PVC/TI1符合DIN VDE 0281第1部分HD 21.13. 颜色识别:符合 HD 402标准4. 应用标准: HD 21.3 S3、VDE-0281 Part-3、CE Low VoltageDiretive、73/23/EEC and 93/68/EEC技术参数：1. 额定电压:300/500V2. 测试电压:2000V符合DIN VDE 0281第2部分HD 21.23. 最小弯曲半径4. 固定敷设:12D(电缆外径)5. 移动安装;16D(电缆外径)6. 温度范围7. 固定敷设:-20至+70℃8. 移动安装:-5 ℃至+70℃型号规格近似外径 (mm)电缆近似重量 (kg/km)H05V - K0.52.18.5H05V - K0.752.311.2H05V - K12.413.6
HO5V-R
HO5V-R可弯曲单芯线，易开皮，裁剪，安装方便，符合欧盟协调标准，用于电器、装置的配电盘与电源分配器接线板之间的内部周边接线，电子和电气设备开关柜之间接口，设计使用半暴露和嵌入式导管可弯曲敷设与接地线。符合认证:RoHS CE 电缆结构1. 导体:绞合裸铜或者镀锡铜符合IEC60228，VDE02952. 绝缘:PVC/TI1符合 DIN VDE0281第1部分 HD21.13. 颜色识别:符合 HD 402 标准4. 应用标准:HD 21.3 S3、VDE-0281 Part-3、CE Low VltageDiretive、73/23/EEC and 93/68/EEC技术参数：1. 额定电压:300/500V2. 测试电压:2000V符合DINVDE0281第2部分HD21.23. 最小弯曲半径4. 固定敷设：12D(电缆外径)5. 温度范围6. 固定敷设:-20至 +70℃型号规格近似外径 (mm)电缆近似重量 (kg/km)H05V - R0.52.18.9H05V - R0.752.311.5H05V - R12.514.4

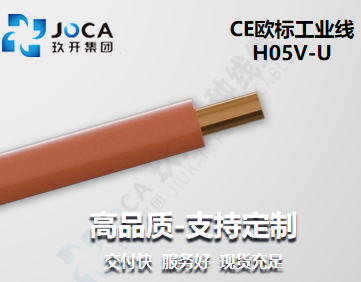

H05V-U
H05V-U实芯单芯线，易开皮，裁剪，安装方便，符合欧盟协调标准，用于电器、仪器的配电盘与电源分配器接线板之间的内部周边接线，电子和电气设备开关柜之间接口，同时适用于电源与照明系统;可暴露和嵌入式导管固定敷设。符合认证:RoHS CE 电缆结构1. 导 体：单根裸铜或者镀锡铜符合IEC 60228,VDE 0295 1类标准2. 绝 缘：PVC/TI1符合DIN VDE 0281第1部分HD21.1 3. 颜色识别：符合HD 402标准4. 应用标准：HD21.3 S3、VDE-0281Part-3、CELow Voltage Diretive、73/23/EECand 93/68/EEC技术参数：1. 额定电压：300/500V2. 测试电压：2000V符合DIN VDE 0281第2部分HD21.2 3. 最小弯曲半径-固定敷设：12D (电缆外径) 4. 温度范围-固定敷设：-20℃至+70℃型号规格近似外径 (mm)电缆近似重量 (kg/km)H05V - U0.528.4H05V - U0.752.211H05V - U12.313.6
H05VVD3H6-F （0.75mm2-1mm2 3-24 芯，25-60 芯）
H05VVD3H6-F Application Scope:Suitable for traveling inside the elevator free-hanging suspended over 80 meters in length, and moving speed no more than 4 m / s , cable can also be used as a travel lift and cable reel cableH05VVD3H6-F Structure:Conductor: stranded bare copper or tinned copper comply with VDE 0295 CLASS 5 & CLASS 6, IEC 228Insulation: PVC / TI2 PVC comply with DIN VDE 0281.Color ID: in line with standard HD 308Reinforcement:Galvanized steel wireSheath material: PVC / TM2 PVCApplication Standard:HD21, VDE 0281, EN 50214-2006H05VVD3H6-F Characteristics and Compliance:Features: excellent resistance to flex;good oil resistance, cold resistance, moisture resistance excellent wear resistance, withstand greater mechanical stressConformity Approval: ROHS CEH05VVD3H6-F Technical Parameters:Rated Voltage: 300/500V Test Voltage: insulation thickness ≤ 0.6: 1500V,Final test: 2000VMin. Bending RadiusCable laying installation allows bending radius should be not less than 6 times the cable small side.Temperature Range: -15 To +70 ℃flame test: VDE0472 804 part by Class B Experimental and IEC332-1
H05V2V2-F，H05V2V2H2-F
H05V2V2-F，H05V2V2H2-F Application Scope:Available for external & internal wiring of electrical instrument, power device & automatic device without forcible traction. Without direction, at times for movable wiring.H05V2V2-F，H05V2V2H2-F Structure:Conductor: Stranded bare copper or tinned copper in accordance with VDE 0281 Part 5, HD21.5S3 IEC 227-5Insulation: PVC/TM2PVC in accordance with DIN VDE 0281.Color ID: In accordance with HD 402 StandardJacket Material: PVC/TM2 PVCApplication Standard:HD21.5, VDE 0281, CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,CE(Low voltage)73/23/EEC & 93/68/EECH05V2V2-F，H05V2V2H2-F Features & Conformity:Features: Super fine conductor, flexible for small bending angle Durable for certain external mechanical forcesIn accordance with EU coordination standardConformity Approval: RoHS CEH05V2V2-F，H05V2V2H2-F Technical Parameters:Rated Voltage：300/500VTest Voltage：2000V HD21.2 In accordance with DIN VDE 0281 Part 2 HD21.2Min. Bending RadiusFixed Installation：5×D（Cable OD）Movable Installation：8×D（Cable OD）Temperature RangeFixed Installation：-20 To +90℃Movable Installation：-5 To +90℃
H03VV-F，H03VVH2-F
H03VV-F，H03VVH2-F Application Scope:Available for external & internal wiring of electrical instrument, power device & automatic device without forcible traction. Without direction, at times for movable wiring.H03VV-F，H03VVH2-F Structure:Conductor: Stranded bare copper or tinned copper in accordance with VDE 0281 Part 5, HD21.5S3 IEC 227-5Insulation: PVC/TM2PVC in accordance with DIN VDE 0281.Color ID: In accordance with HD 402 StandardJacket Material: PVC/TM2 PVCApplication Standard:HD21.5, VDE 0281, CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,CE(Low voltage)73/23/EEC & 93/68/EECH03VV-F，H03VVH2-F Features & Conformity:Features: Super fine conductor, flexible for small bending angle Durable for certain external mechanical forcesIn accordance with EU coordination standardConformity Approval: RoHS CEH03VV-F，H03VVH2-F Technical Parameters:Rated Voltage：300/300VTest Voltage：2000V HD21.2 In accordance with DIN VDE 0281 Part 2 HD21.2Min. Bending RadiusFixed Installation：5×D（Cable OD）Movable Installation：8×D（Cable OD）Temperature RangeFixed Installation：-20 To +70℃Movable Installation：-5 To +70℃
